Carousel Parking System

Maximize parking. Minimize space.

Park up to 16 sedans or 14 SUVs in approximately the footprint of just two conventional parking spaces.

Automated How it works

A Ferris Wheel for Vehicles. More Parking in the Space of Two Cars.

Parkmatic’s Carousel Parking System moves vehicles vertically, much like a Ferris wheel, while occupying approximately the footprint of two parking spaces. Each vehicle is retrieved directly at ground level, making the system well suited to properties where parking space is limited. With the site properly prepared and conditions in place, installation can be completed in less than eight days.

Operation is simple and user-friendly. The driver selects an assigned parking number using a keypad, access fob, or optional mobile app. The system then automatically rotates clockwise or counterclockwise, choosing the shortest route to retrieve the vehicle.

Optional EV charging can be integrated into the system, allowing electric vehicles to charge while parked.

Our rotary systems are available in multiple configurations for sedans, SUVs, or a combination of vehicle sizes. Each system can be customized to suit the property’s capacity, available footprint, architectural design, and operational requirements.

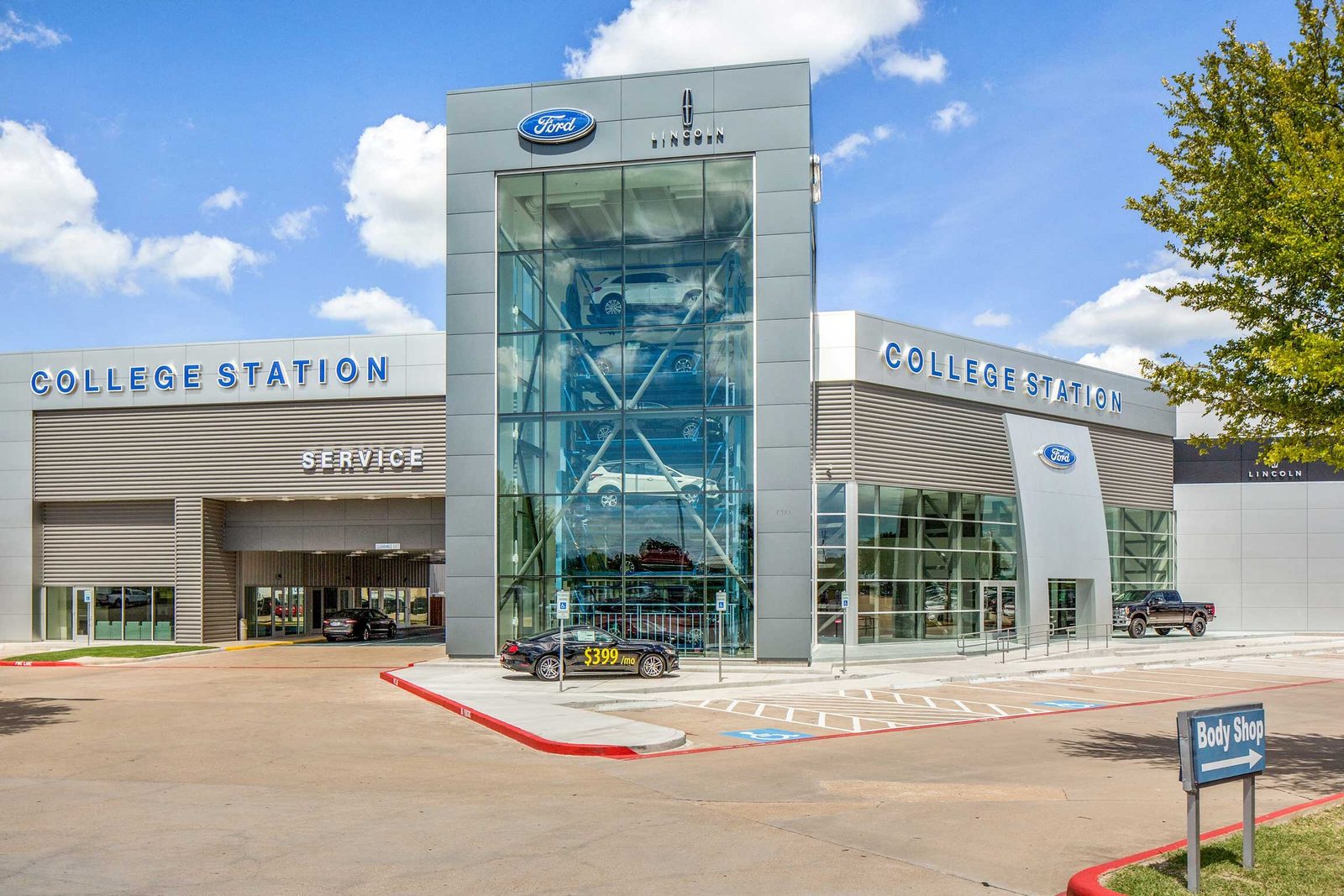

A Carousel tower built into the front of a vehicle dealership in College Station, Texas — The tower stands in the footprint of two parking spaces — drivers hand over the car at grade and walk away.

up to 16 sedans

or up to 14 SUVs in a single tower
2 parking spaces

the approximate footprint required
Ground level

every vehicle is retrieved at grade
0 attendants

the driver parks and leaves

Why the Carousel

Key benefits

An excellent solution for residential developments, hotels, offices, hospitals, dealerships, vehicle-storage facilities, and other properties where every square foot matters.

Parks up to 16 vehicles in approximately two conventional parking spaces
EV-ready options — integrated EV charging to support electric and plug-in hybrid vehicles
Accommodates sedans, SUVs, or mixed vehicle configurations
Automated retrieval using the shortest rotational path
Simple keypad, access-fob, or optional mobile-app operation
No parking attendant required
Suitable for new construction and many existing properties
Custom exterior cladding can complement the building’s architecture
Engineered with integrated safety and security features
Professional installation, training, and ongoing maintenance support

Technical data

Model specifications

Every model in both series — SM-L for sedans, SM-SU for SUVs. Each system is customized per project — send us your site and we will confirm the model that fits.

Specifications for all twenty Carousel models — SM-L Series for sedans and SM-SU Series for SUVs
Model	Vehicle type	Parking capacity	Car length	Car width	Car height	Car weight	Heavier vehicles	Motor	Speed
SM6L2	Sedan	6 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	5.5kW × 4P	4.5m/min
SM7L2	Sedan	7 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM8L2	Sedan	8 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM9L2	Sedan	9 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM10L2	Sedan	10 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM11L2	Sedan	11 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM12L2	Sedan	12 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	One 5,180 lb (2,350 kg)	7.5kW × 4P	4.5m/min
SM13L2	Sedan	13 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	Two 5,180 lb (2,350 kg)	11kW × 4P	5m/min
SM14L2	Sedan	14 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	Two 5,180 lb (2,350 kg)	11kW × 4P	5m/min
SM15L2	Sedan	15 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	Two 5,180 lb (2,350 kg)	15kW × 4P	5m/min
SM16L2	Sedan	16 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	5′ 4″ / 1,625 mm	4,740 lb / 2,150 kg	Two 5,180 lb (2,350 kg)	15kW × 4P	5m/min
SM6SU2	SUV (normal size)	6 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	One 5,850 lb (2,650 kg)	7.5kW × 4P	4.5m/min
SM7SU2	SUV (normal size)	7 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	One 5,850 lb (2,650 kg)	7.5kW × 4P	4.5m/min
SM8SU2	SUV (normal size)	8 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	One 5,850 lb (2,650 kg)	7.5kW × 4P	4.5m/min
SM9SU2	SUV (normal size)	9 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	One 5,850 lb (2,650 kg)	7.5kW × 4P	4.5m/min
SM10SU2	SUV (normal size)	10 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	One 5,850 lb (2,650 kg)	7.5kW × 4P	4.5m/min
SM11SU2	SUV (normal size)	11 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	Two 5,850 lb (2,650 kg)	11kW × 4P	5m/min
SM12SU2	SUV (normal size)	12 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	Two 5,850 lb (2,650 kg)	11kW × 4P	5.0m/min
SM13SU2	SUV (normal size)	13 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	Two 5,850 lb (2,650 kg)	15kW × 4P	5.0m/min
SM14SU2	SUV (normal size)	14 cars	17′ 5″ / 5,300 mm	7′ 4″ / 2,230 mm	6′ 7″ / 2,000 mm	5,290 lb / 2,400 kg	Two 5,850 lb (2,650 kg)	15kW × 4P	5.0m/min

Power supply is AC 220/380 V, 3 PH, 50/60 Hz on every model. Car dimensions are industry standard and accommodate 85% of cars in production; width is measured with side mirrors folded.

Installed projects

The Carousel in Action

Systems delivered across the United States and abroad — residential, hospitality, dealership and mixed-use sites.

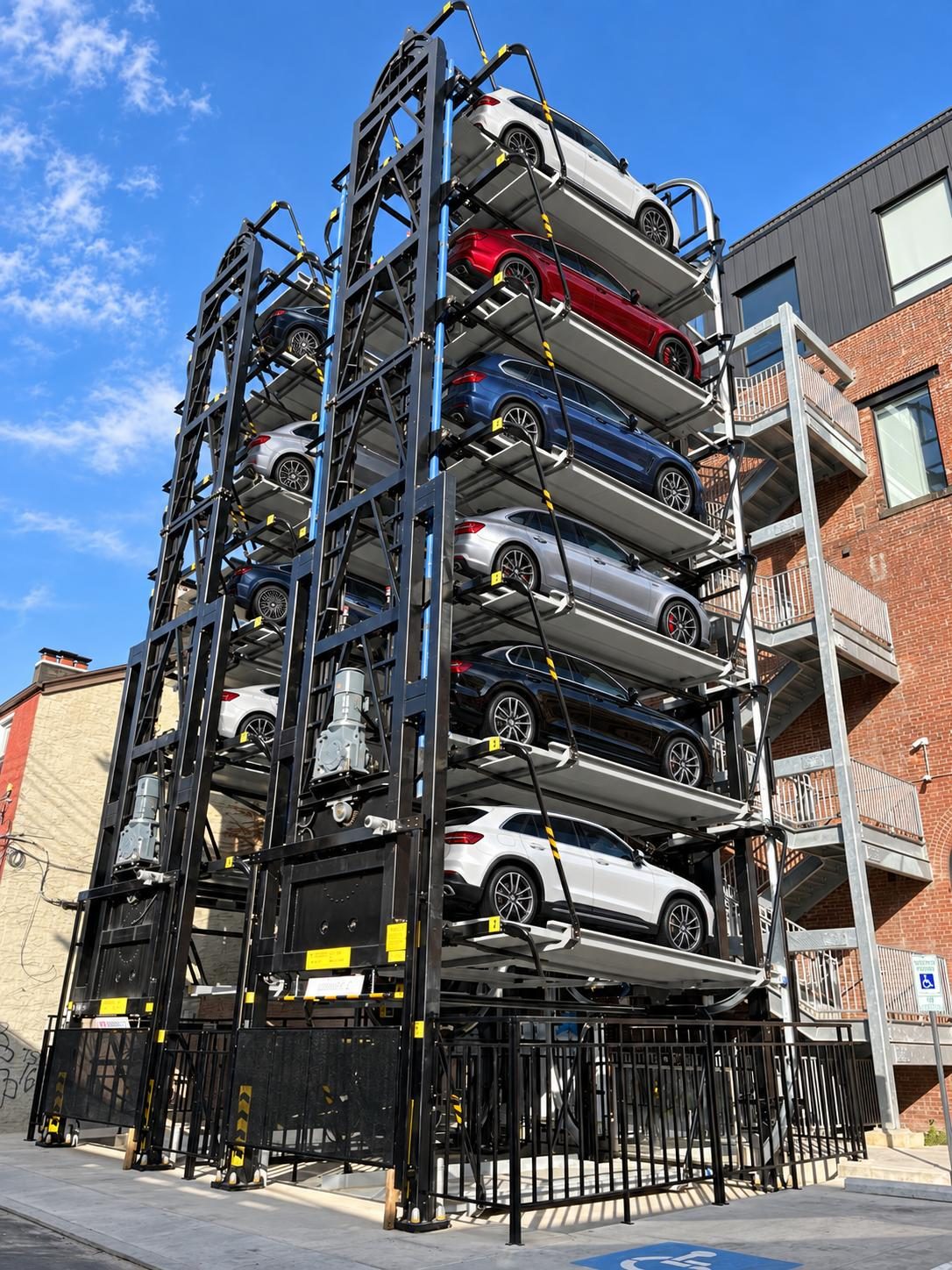

Pittsburgh, Pennsylvania

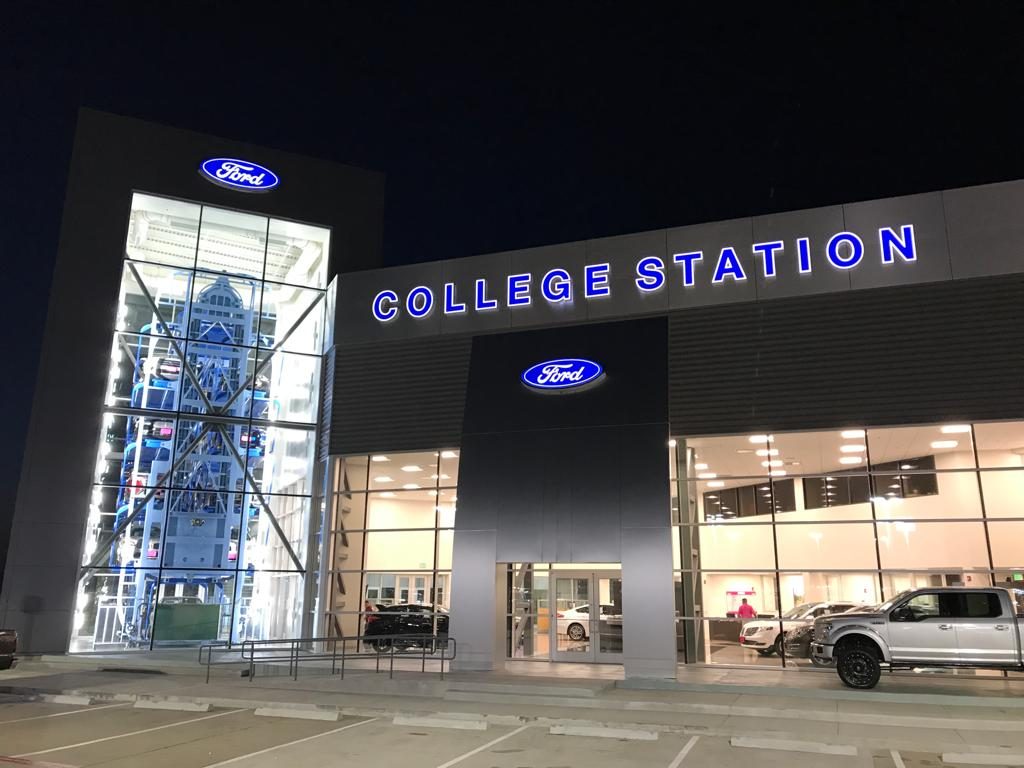

College Station, Texas

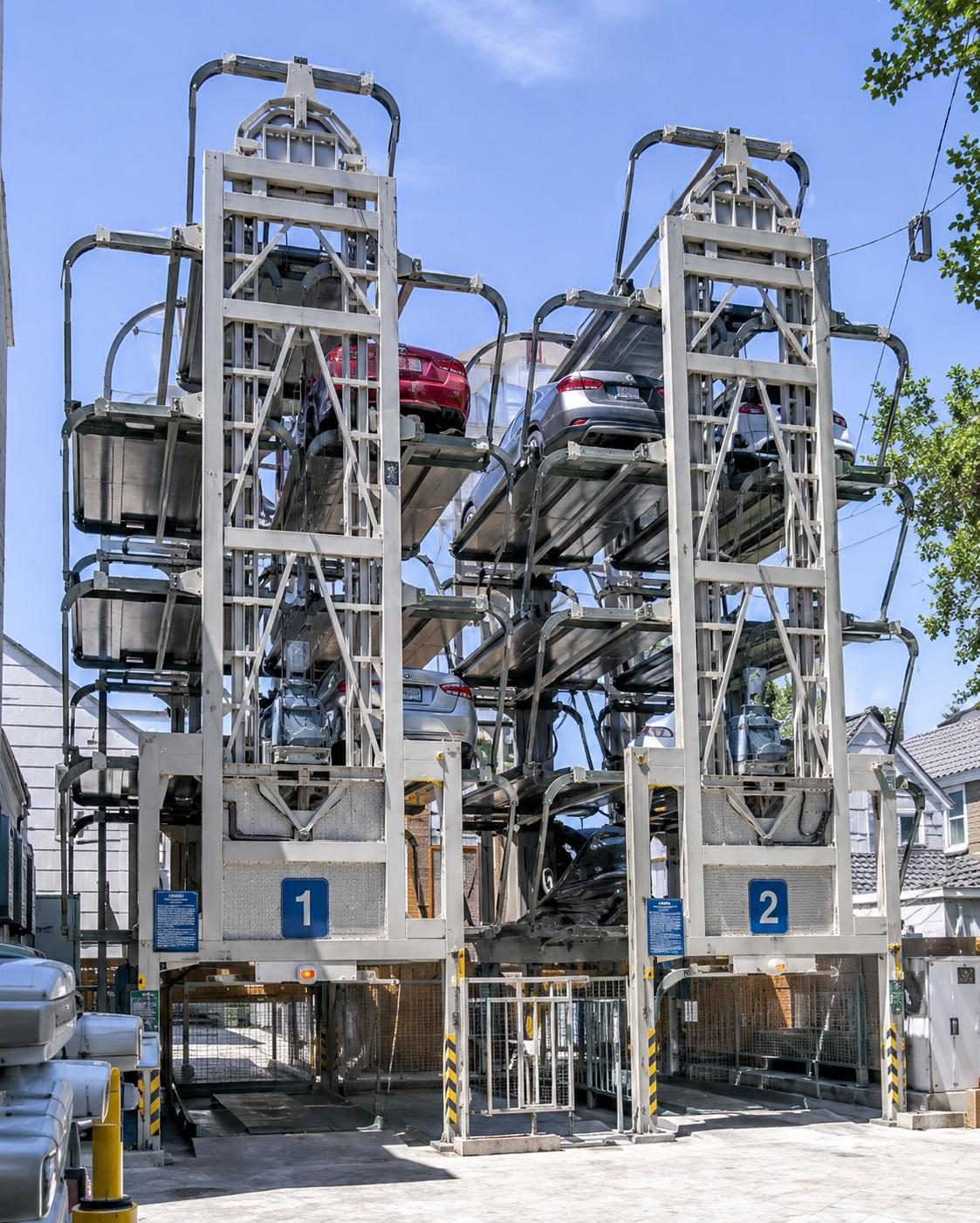

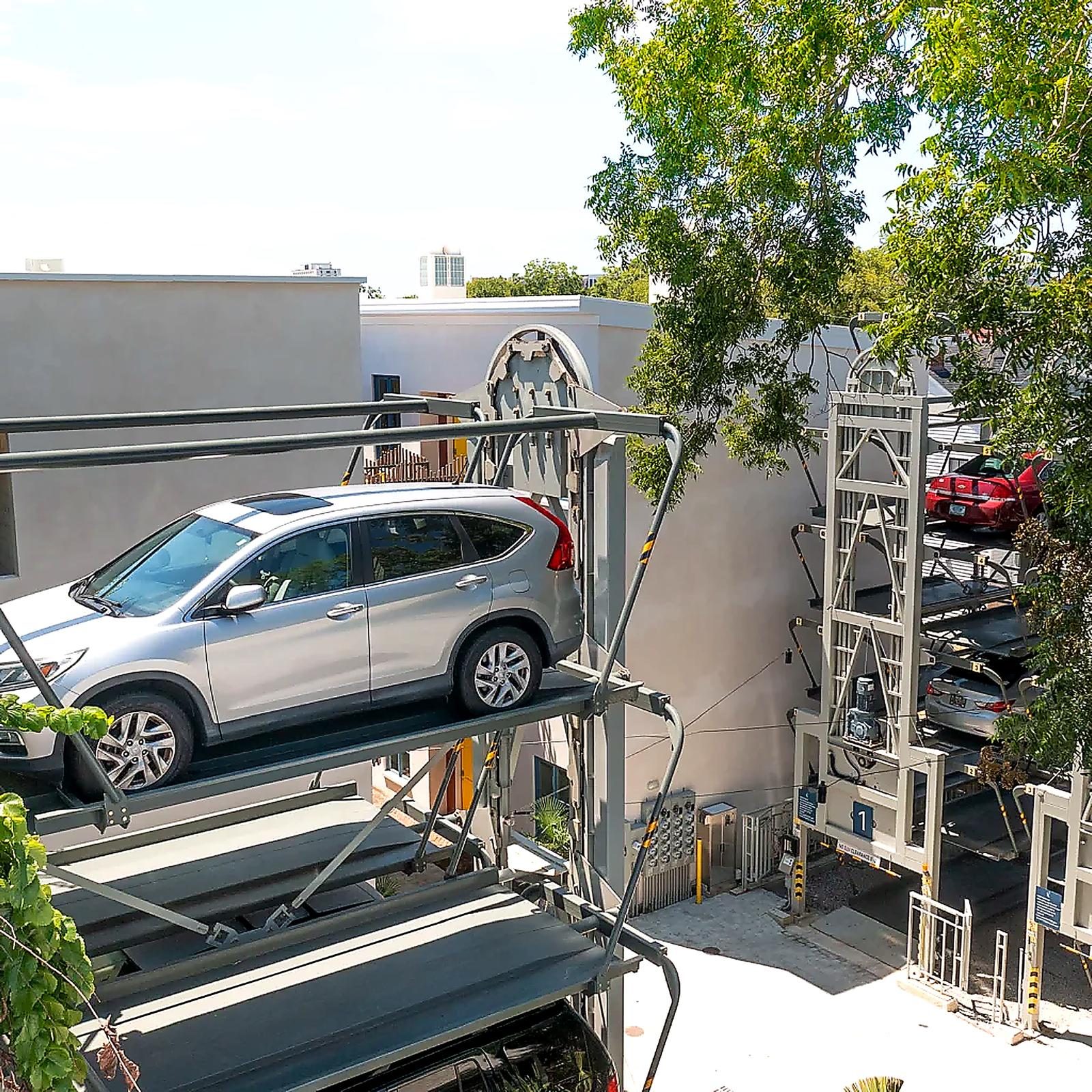

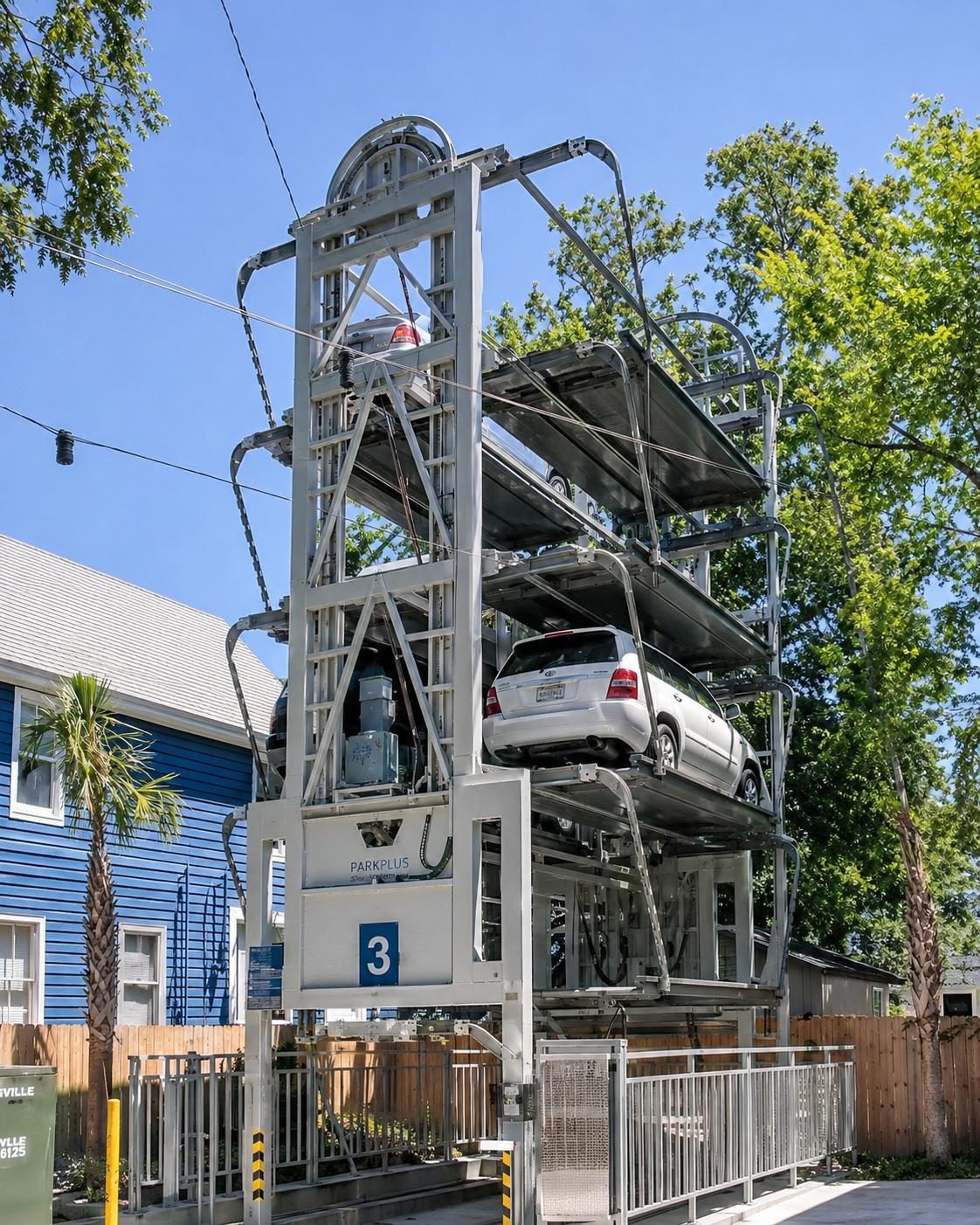

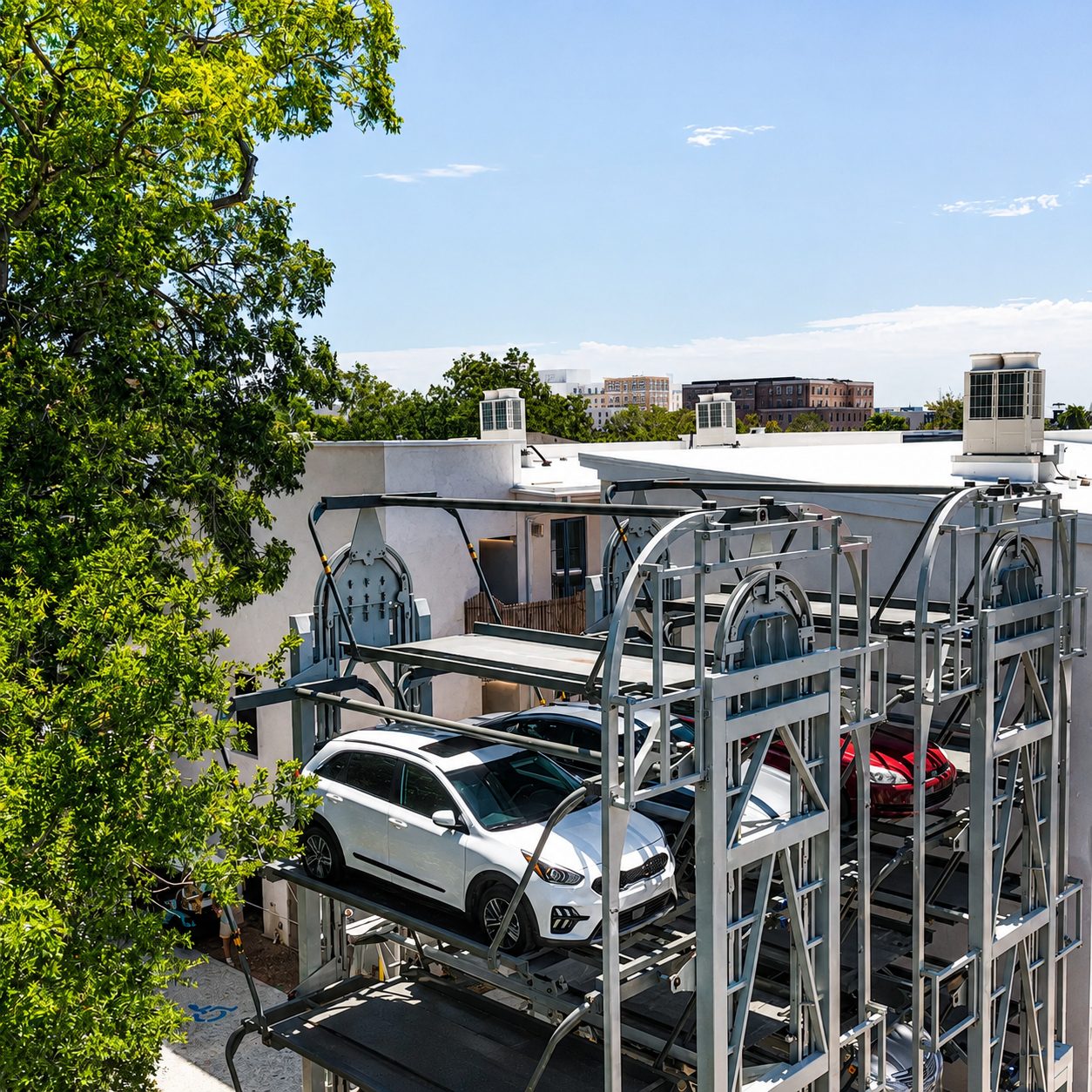

Charleston, South Carolina
Charleston, South Carolina
Charleston, South Carolina
Charleston, South Carolina

Documentation

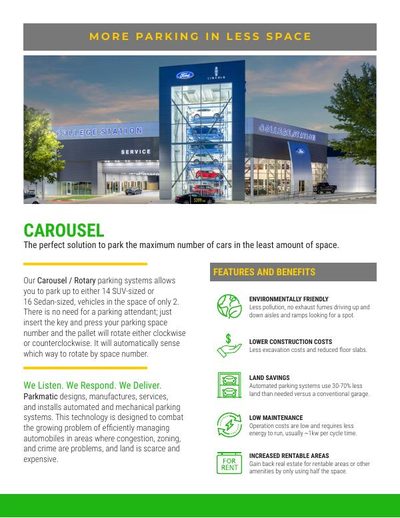

Brochure and specifications

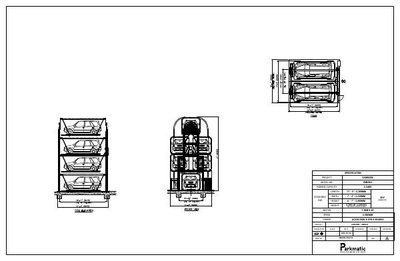

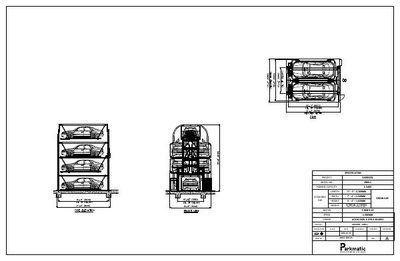

Everything on this page as printable documents, including the full dimensioned drawing sets for both models.

Also automated

Other automated systems

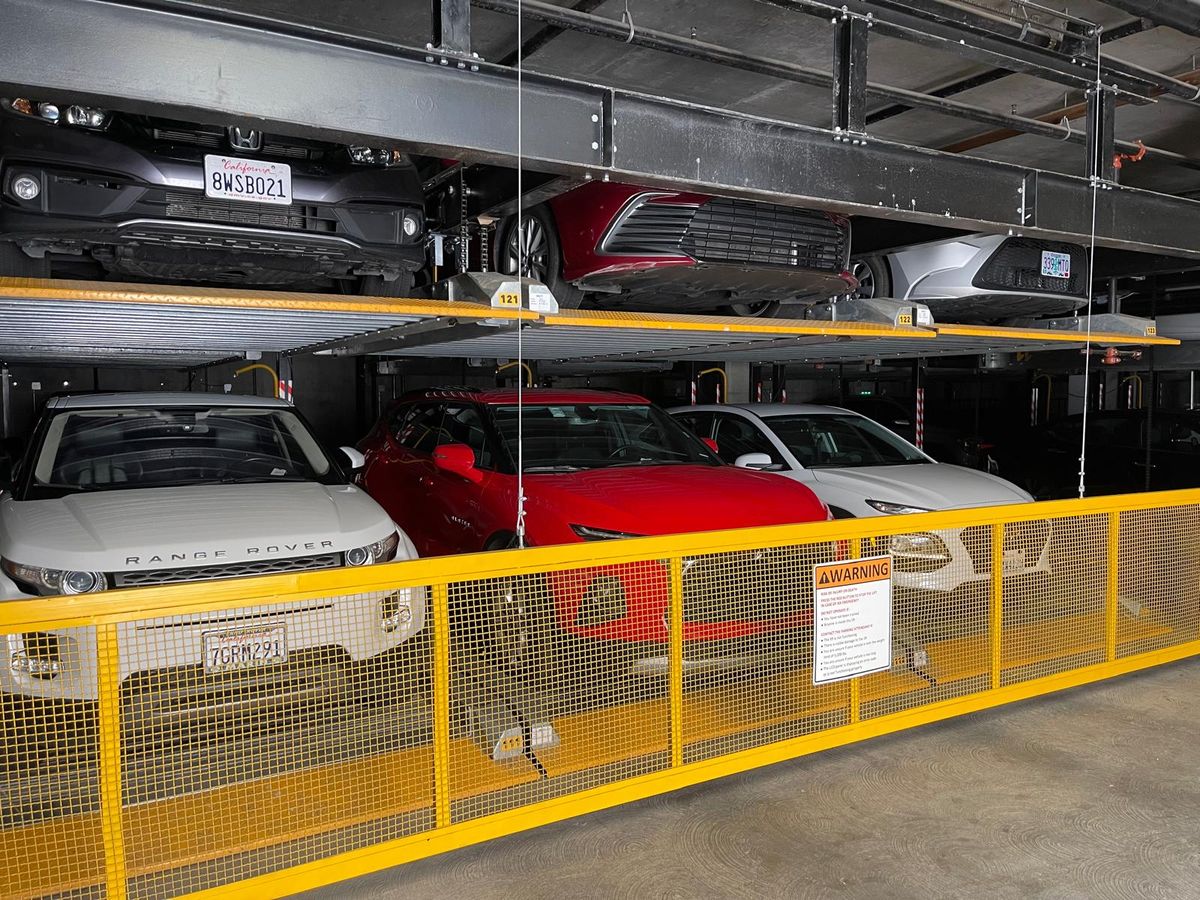

Puzzle

Puzzle system offers independently accessible spaces in a compact grid. It can be built up to four levels high with pit options, making it ideal for tight, indoor sites.
Learn more about the Puzzle Parking System

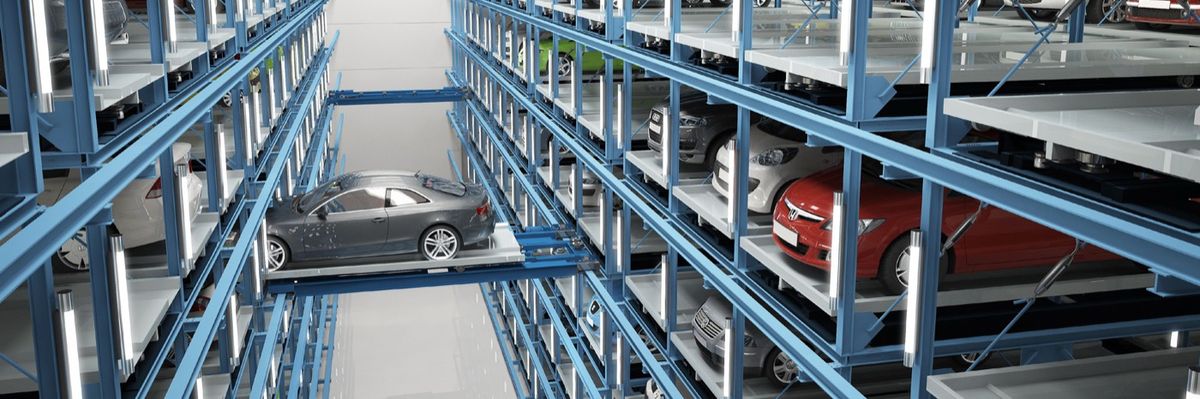

Rack & Rail

Designed for high-volume needs, this fully-automated system moves cars vertically and horizontally. Perfect for large developments and public parking garages.
Learn more about the Rack and Rail Parking System

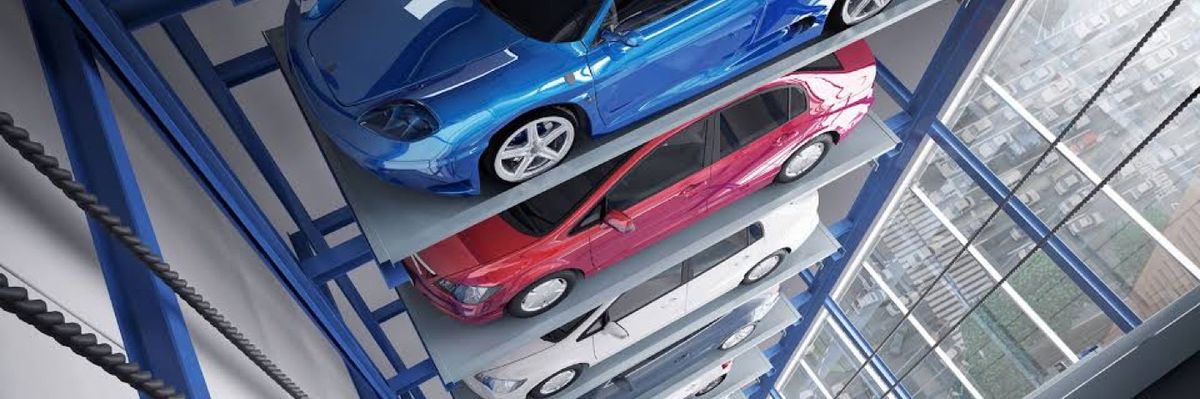

Tower
